FS-11
Description & Application

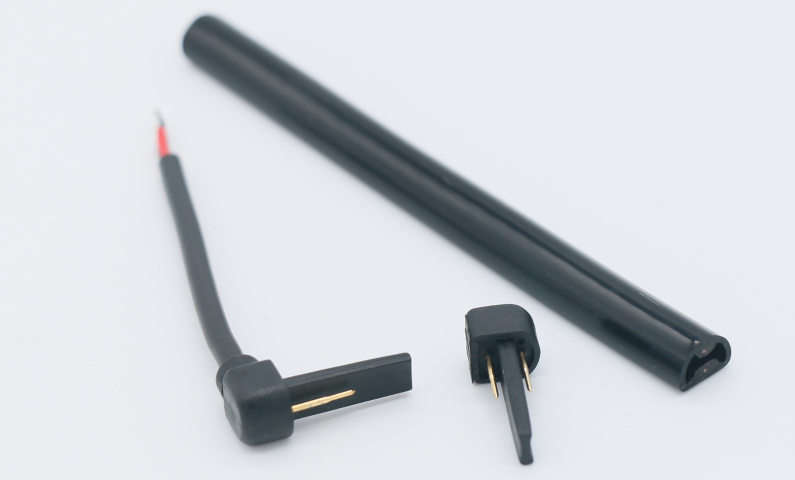

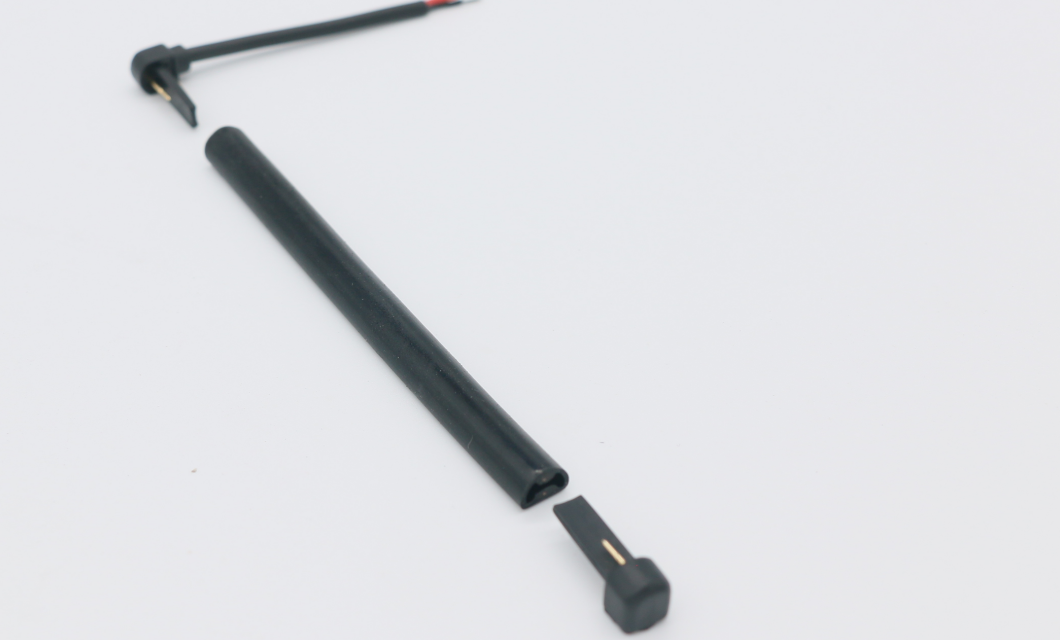

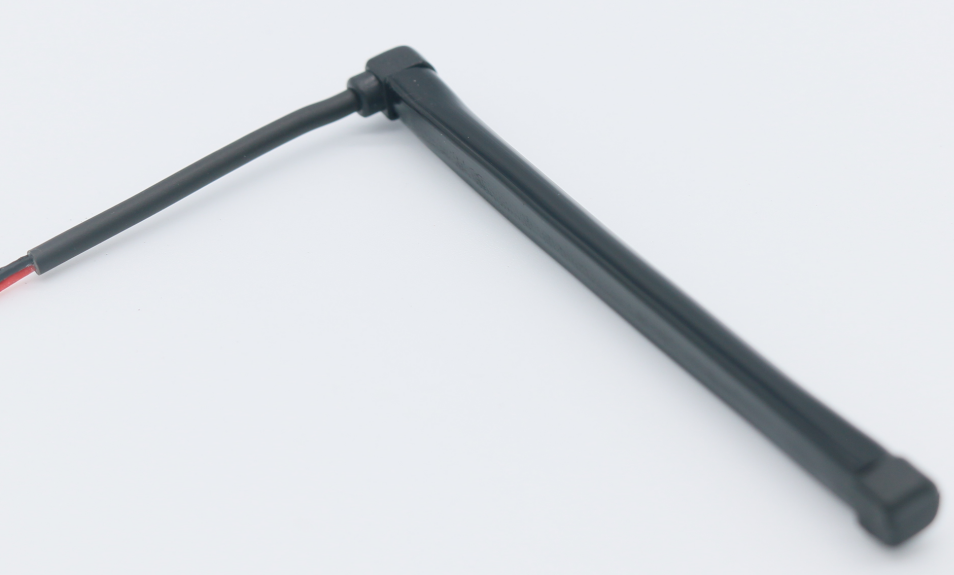

This safety sensor strip FS-11 is mini edge, The advantage of this strip is that it can be used on robot separately without rubber profile, adhesive tape on bottom.
Safety strip switch FS-11 with 3M adhesive tape can be used on both straight and curved surface. On a curved surface, the bending radius can reach 20mm, or even 15mm. Another sensor tape FS-5, it can even reach 10mm, or smaller. They both can be applied to robot, small device or small parts of machine.
Safety edge FS-11 also can work with rubber profile, such as R102(16mm*20mm), R201(23mm*26mm), and then be applied on roller doors.
Technical data:
| 1. Product Name | Rubber strip with 3M at the bottom |
| 2. Item | FS-11 |
| 3. Brand | FT |
| 5. Material | silicone |
| 6. Color | black or customized |
| 7. Dimension | 8.3mm*6.3mm |
| 8. Application | Application to narrow edges, such as robots, or other automation equipment |
| 9. Approval | CE & RoHS |
| 10.Custom Design | OEM & ODM |
| 11.required force | 5.5N |
| 12.launch distance | 1.4mm |
| 13.Temperature range | –30℃~+80℃ |
| 14.weight | ±33g/m |
| 15.Packing | carton, 100 m/roll |
| 16.Delivery Port | Ningbo or Shanghai |
Packing
FS-11: Packed with carton, and 100m per roll;

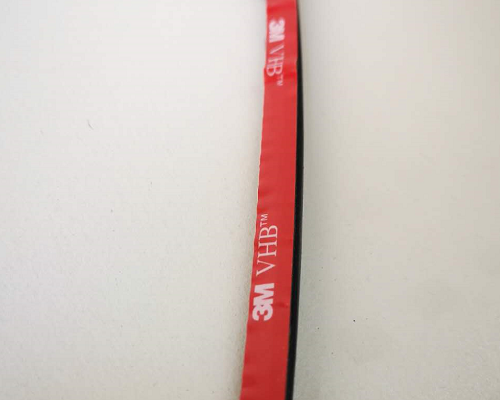

FS-11 with 3M adhesive tape: packed with long carton, and within 3m per piece.
Our service
1. Cut service, 3M Adhesive service, Logo service.
2. Trade terms: FOB, CIF, EXW, Etc.
3. Payment terms: T/T, Western Union, PayPal.
FAQ
1. Why choose us?
- Professional---We have been engaged in these products more than 10years, and all our products are with strict quality requirements;
- Two years warranty, 20-year working life;
- CE、 RoHS, approved
2. Production time
About 15-20 days lead time
3. Sample
Available, sample Lead Time: 3-10days
4. Can you cut for us?
Yes of course.
We would cut to the length the customer needs, usually no more than 3 meters per piece.
5. Can it be used separately without rubber profile?
Yes, you can use adhesive tape on the bottom.
Also can be worked with rubber profile for a long working life.
